Descripción

Nominal voltage: 48V
Nominal capacity: 9600 Wh
Discharge depth: 96%
Useful capacity: 9216 Wh

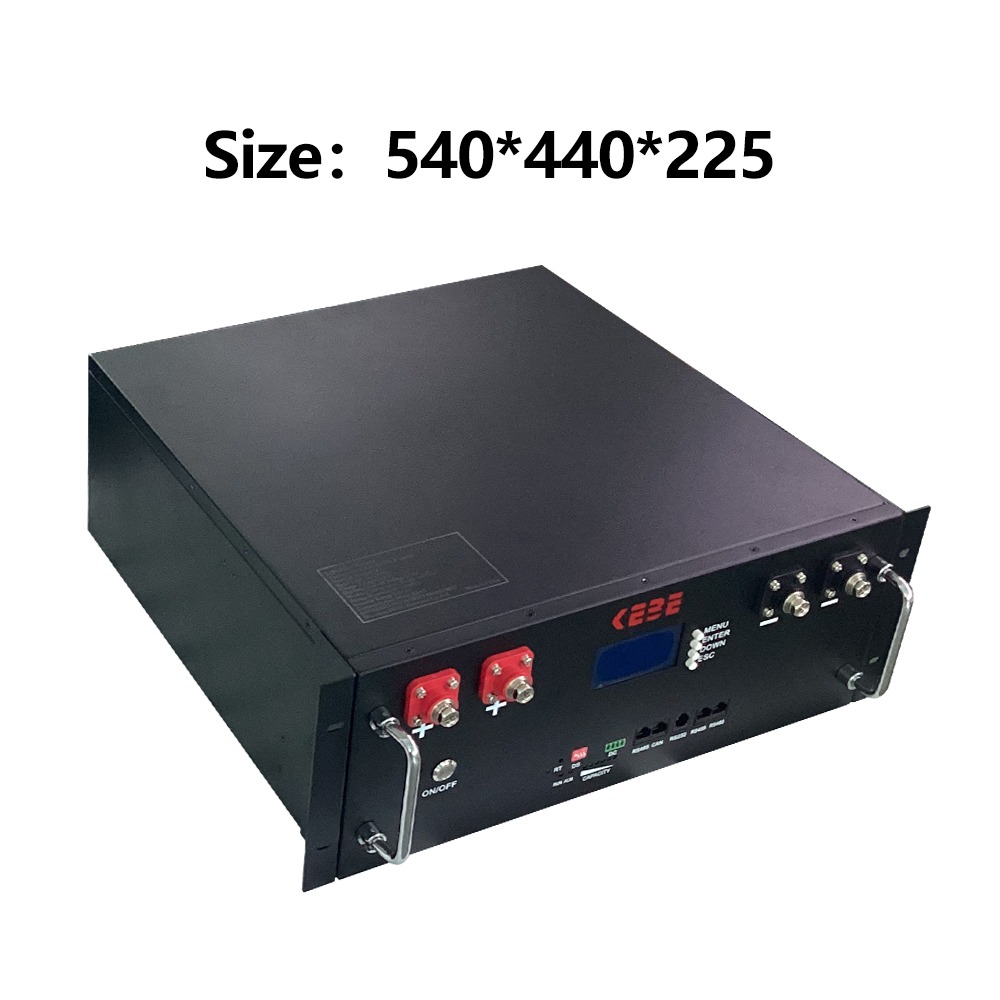

Dimensions in mm: 540 * 440 * 225
Weight: 71 Kg
Discharge voltage: 44.5 ~ 53.5V
Charging voltage: 52.5 ~ 53.5
Recommended charge and discharge current : 80A
Maximum charge and discharge current: 100A (It can offer 120A for 15 minutes and up to 200A for 15 seconds)
Communication ports: RS485 and CAN
Maximum parallelization capacity: Up to 16 units can be put in parallel
Working temperature range: -10º ~ 65º
Admissible humidity range: 5% ~ 95% (Despite this, it is not recommended to have it in humid and / or poorly ventilated places)
Maximum working altitude: <2000m
Estimated useful life: +15 years (with working temperature at 25º)
Estimated life cycles: Up to 6,000 cycles (with working temperature at 25º)
